CoMeCS: Comet and Meteorite Materials - Studied by Chemometrics of Spectroscopic
Data
|
Examples of Electron Microscope Images from Meteorite Grains
Measurements
by Dan Topa [web], NHM Vienna [web], July 2016.
Supported
by F. Brandstätter, L. Ferrière,
and C. Köberl (NHM).
Instrument:
Jeol JSM-6610LV, Bruker EDS, software Bruker Esprit
2.0.

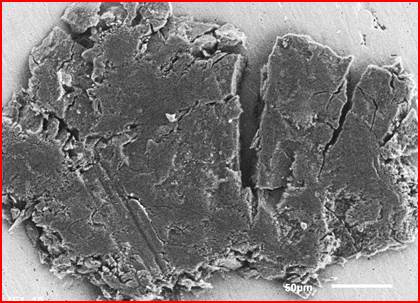

Left: SEM
image (Scanning Electron Microscope, Secondary Electron image): topology;

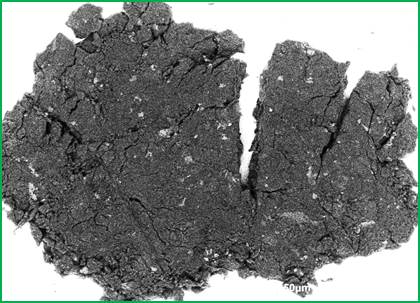

Right:
BSE image (Back Scattered Electron image): average atomic
number (bright = high)
These
pictures demonstrate the heterogeneity of the meteorite material.
Further
evaluation and measurements in progress.
Meteorite Tieschitz (ordinary chondrite). Target 4E1, grain 9.
Meteorite Renazzo
(carbonaceous chondrite). Target 4E1, grain
11.
Meteorite Tissint
(Martian, shergottite). Target 4E1, grain 3.
