COSIMA: Preliminary model of the instrument

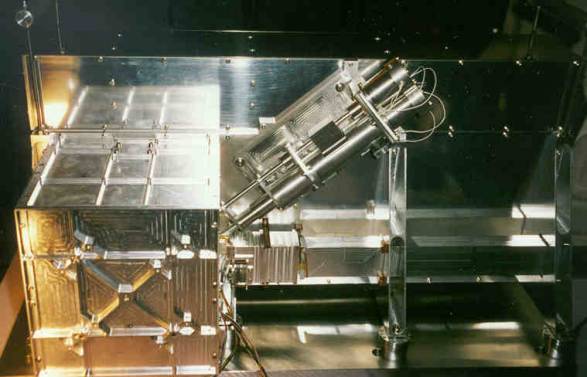

Overview: At left hand side is the box with the target (sample) manipulator; the diagonal part is the primary ion beam source (PIBS); the small rectangular horizontal tube is the secondary ion flight tube; the ion reflector is at the right hand side out of the picture. The large box in the background will carry electronics. Sulden Meeting, Glurns/Glorenza, Italy (March 1999)
